Product

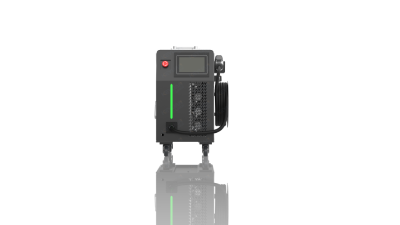

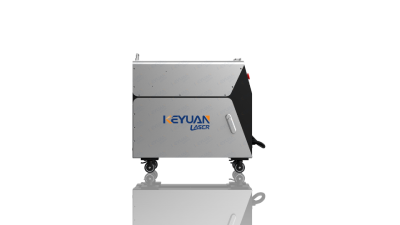

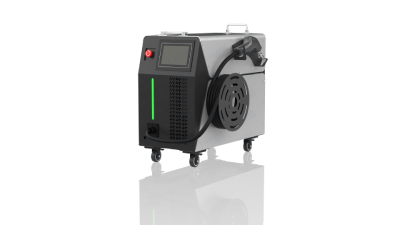

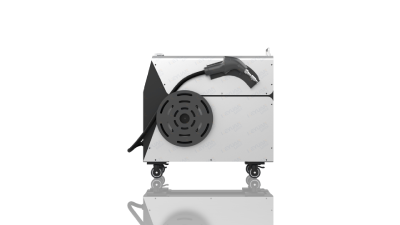

Air Cooling Fiber Laser Welding 4-in-1 Machine
- Product details
-
Machine Features
1. 4-in-1 Multifunctional Performance: Integrates laser welding, cutting, and weld seam cleaning functions in one machine, meeting diverse metal processing needs.
2. Built-in Automatic Wire Feeder: Auto wire feeder is integrated into the cabinet, with wire feeding, fiber and gas hoses in a fireproof armor for easier and more convenient welding.
3. 1200W/1500W MAX Fiber Laser Source: Equipped with a high-quality 1200W/1500W MAX laser source, ensuring stable output and excellent processing results for various metals.
4. Intelligent Laser Welding Gun: Features a safe, lightweight intelligent welding gun with stable performance, enabling efficient, high-quality welding with multiple functions.
5. Efficient Air Cooling System: Adopts air cooling technology for stable and reliable operation, low failure rate, and high energy efficiency without complex water cooling setups.
6. Smooth Wire Feeding System: Utilizes a graphene wire feeding hose to ensure smooth, uninterrupted wire feeding, improving welding precision and consistency.
7. Interchangeable Laser Nozzles: Comes with dedicated nozzles for welding, cutting, and weld seam cleaning, supporting quick switching for different processing tasks.8. Portable & Stable Mobility: Lightweight integrated design with 2-inch 300kg brake universal wheels for easy movement and stable positioning during on-site work.
Machine Parameters
Machine Model KEY-1500AirW, KEY-1200AirW Air Cooling Laser source power 1200W/1500W Working modes Welding: wobble, welding width 5mm
Weld bead cleaning: width 5mm
Cleaning: width 120mmAdvantages 1. Welding, cutting, cleaning, weld seam cleaning 4 functions
2. Highly integrated, wire feeder built in machine cabinet
3. Power input: 1-phase AC 220VWelding system SUP Cooling mode Air-cooling Welding gun weight 0.58kg Welding modes Dot, line Cable length 5 meters Auto feeding loading ≤15kgs Machine dimensions 740*425*610mm Machine net weight 60kg Power input 220V Languages 19 languages optional Protective lens 2 pieces, drawer type Total power consumption 6KW (when full loaded) Machine Application
1. Ideal for laser welding of long-distance and large workpieces, overcoming worktable travel limitations and suitable for on-site processing.
2. Delivers high-quality welds with a small heat-affected zone, preventing workpiece deformation, blackening, and backside marks.
3. Supports diverse welding modes including thermal conduction welding, continuous deep melting welding, spot welding, butt welding, lap welding, sealing welding, and seam welding.
4. Widely applied in aerospace, shipbuilding, machinery, automotive, kitchenware, and new energy vehicle industries for robust metal fabrication.
5. Perfect for precision welding in the 3C, medical, electronics, and optoelectronic communication device industries, especially for brass and aluminum components.6. Used in advertising, lighting, and mold industries for metal character welding and forming, as well as small-scale welding processing tasks.

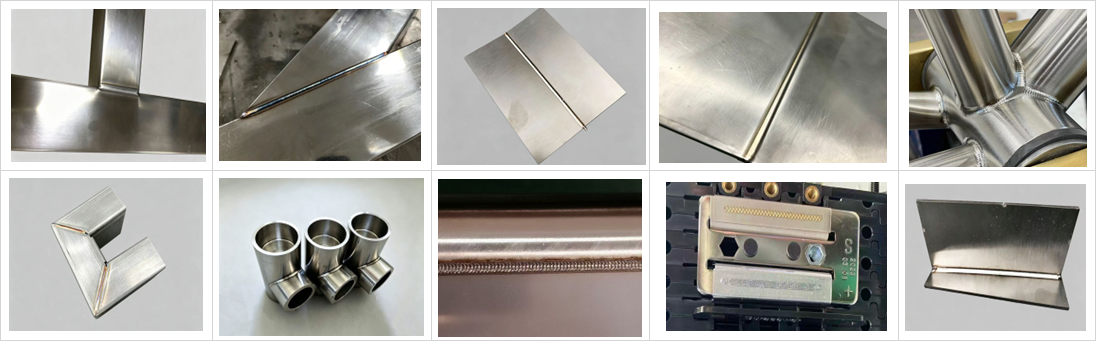

Machine samples
