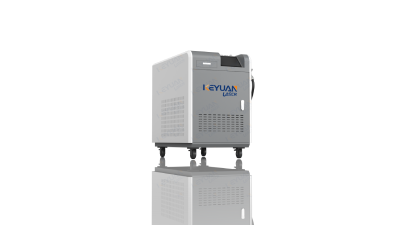

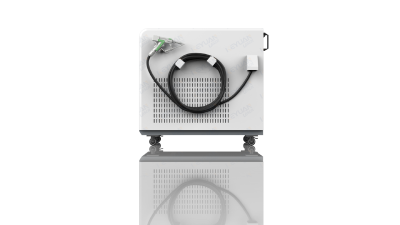

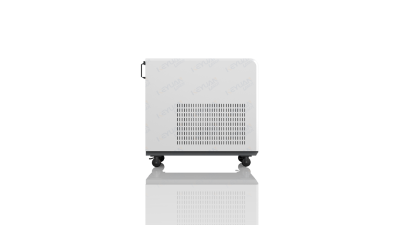

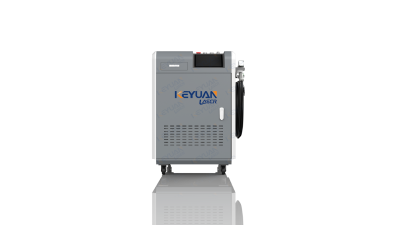

4-in-1 / 5-in-1 Handheld Fiber Laser Welding Cutting Cleaning Machine
- Product details
-
Machine Features
1. 4-in-1 / 5-in-1 Multifunctional Performance: Integrates welding, cutting, cleaning, weld seam cleaning, and power battery welding functions in one machine, covering diverse metal processing needs.
2. Easy Function Conversion: Switch between welding and cleaning modes by simply replacing the focusing lens and laser head, with dedicated kits for cleaning, weld seam cleaning, and power battery welding.
3. Wobble Technology：Features double wobble for welding (0–5mm width), cleaning (0–35mm width), and weld seam cleaning (0–12mm width), delivering stable and high-quality results.
4. Portable & Flexible Operation: Handheld design with a long cable (9m standard, 14m optional) and a compact body, enabling easy movement and long-distance, on-site processing.
5. Superior Welding Quality: Produces smooth, even weld surfaces with no spatter, defects, or internal cracks, ensuring excellent mechanical properties for aluminum alloys and reducing post-welding polishing.
6. Efficient & Eco-Friendly Cleaning: Laser cleaning removes oxides, rust, and contaminants without chemicals, restoring the original metal surface, improving corrosion resistance, and optimizing pre-welding surface conditions.
7. Specialized Power Battery Welding: Supports penetration welding (no punching needed) and seam welding (deeper fusion, higher reliability) for power batteries, directly impacting battery cost, quality, and safety.
8. Highly Compatible & Customizable: Compatible with Raycus/Maxphotonics/BWT fiber lasers (1200W–3000W), with options for water cooling, nitrogen/argon assist gas, and flexible power input (1-phase 220V / 3-phase 380V).Machine Parameters
Machine Model KEY-1500WaterW, KEY-2000WaterW, KEY-3000WaterW Laser source power 1500W/2000W/3000W Function Welding, Cleaning, Cutting, Weld seam cleaning (Battery welding) Fiber laser Raycus/Maxphotonics/BWT Laser Type Continuous fiber laser Welding Thickness 0.5-8mm Cooling mode Water-cooling Welding modes Red Dot Cable length 9m (14m optional) Power input 1500W 2000W - Single Phase 220V/50HZ/60HZ / / As Requirement3000W - 3Phase 360V/50HZ/60HZ / As Requirement Languages 19 languages optional Protective lens 2 pieces, drawer type Gas assist Nitrogen Power Adjustment Range 10-100% Wire Feeding Equipment Included Welding Material Iron, Stainless Steel, Aluminium, Carbon Steel, etc. Machine Application
1. Welds, cuts and cleans stainless steel, carbon steel, aluminum, galvanized sheet and brass.
2. Provides professional weld seam cleaning.
3. Applied in advertising, electrical cabinet production, textile machinery and electrical accessories.
4. Used for kitchen appliances, automotive, machinery, elevators and metro line parts manufacturing.
5. Suitable for complex irregular welding of stair elevators, shelves, ovens and distribution boxes.
6. Widely used for stainless steel doors, windows, guardrails and home appliance fabrication.Machine samples
