Product

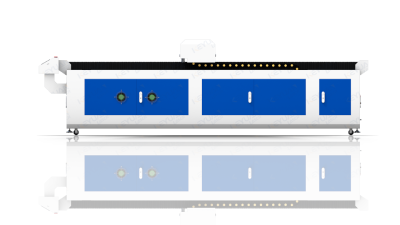

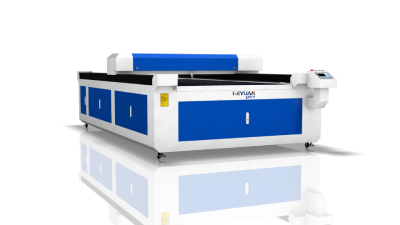

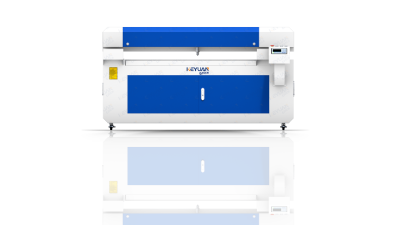

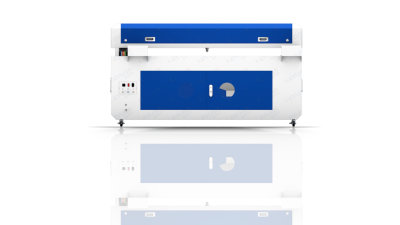

Larger Size CO2 Laser Cutting Machine for non-metal
- Product details
-
Machine Features
1. Large working area options (1600×1600mm, 1300×2500mm, 1500×3000mm) for processing large non-metal sheets and boards efficiently.
2. Top-brand Yongli/Reci CO2 laser tube with 80W-600W power; 80W-100W for dual engraving/cutting, 130W+ for heavy-duty cutting.
3. High-power industrial water cooling system ensures stable laser output, prolonging laser tube service life even during long-time operation.
4. Advanced RuiDa DSP control system, supports multiple file formats and offline operation, easy to operate for industrial use.
5. Precision stepper motors (servo motors optional) with ratio gear and 40mm wide Y-belt, ensuring smooth cutting edges and ±0.01mm positioning precision.
6. Air assist, extractor and solenoid valve included: removes heat/dust/fumes, saves gas, and ensures clean, efficient cutting.
7. Optional blade or honeycomb worktable, suitable for both hard non-metal sheets and soft materials (cloth, leather, paper).8. High engraving speed up to 600mm/sec and cutting speed up to 500mm/sec, meeting large-scale industrial production needs.
Machine Parameters
Product Model
KEY-1325
KEY-1616 KEY-1530 Working Area 1300*2500mm 1600*1600mm 1500*3000mm Laser Power 80W/100W/130W/150W/180W/300W/500W/600W Laser type CO2 glass laser tube, wavelength 10.6μm, Water-cooled Engraving speed 0-60000mm/min Cutting Speed 0-40000mm/min Repeating location ±0.01mm Transmission type Belt transmission (option: Ball Screw/ Gear Rack) Driving system Stepper motor (option: Servo motor) Machine table Blade table (alternative: honeycomb table) Graphic format supported *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las Software supported CorelDraw, AutoCAD (support compatible) Control system RuiDa RDC6445G DSP Off-line control, power 0~100% adjustable Minimum letter size Chinese 2.0×2.0mm, English 1.0×1.0mm Working voltage 110V/220V 50/60Hz Working condition 0-45℃; Humidity 5%-95% (no condensation) Machine Application
1. Cutting and engraving large acrylic, wood, MDF and plywood sheets for advertising signs, display boards and furniture production.
2. Processing large batches of fabric, leather and cloth for garment, packaging and industrial non-metal accessory manufacturing.
3. Engraving and cutting large non-metal sheets for architectural models, lighting fixtures and electronic appliance casings.
4. Large-scale production of arts and crafts, awards, photo frames and personalized large-format decorative items.
5. Widely used in advertising, packaging, garment leather and craft industries for large non-metal processing demands.
6. Engraving glass, marble, ceramic tiles and coated metals for large decorative projects and industrial marking.Processed Sample
