Small Size CO2 Laser Engraving Cutting Machine For Non-metals
+
  • Small Size CO2 Laser Engraving Cutting Machine For Non-metals
  • Small Size CO2 Laser Engraving Cutting Machine For Non-metals
  • Small Size CO2 Laser Engraving Cutting Machine For Non-metals
  • Small Size CO2 Laser Engraving Cutting Machine For Non-metals
  • Small Size CO2 Laser Engraving Cutting Machine For Non-metals

Small Size CO2 Laser Engraving Cutting Machine For Non-metals

High-performance CO2 laser cutter and engraver for non-metal materials.Fast,clean cuts,low maintenance,perfect for crafts,signs and production.Contact us for details.

Category:

Small Size Laser Cutting Engraving

[email protected]

Hotline:+86 131 5600 6309

Get a quote
related products
  • Product details


  • Machine Features

    1. High-speed CO2 laser system with strong performance for efficient non-metal engraving and cutting.
    2. Wide laser power range from 60W to 180W available for different processing demands.
    3. Multiple working sizes optional to meet various production and workspace requirements.
    4. Widely applicable for engraving and cutting acrylic, wood, MDF, leather, fabric and many non-metallic materials.
    5. Stable stepper motor driving system ensures fast and reliable operation.
    6. All-in-one complete machine with standard full accessories for ready-to-use convenience.
    7. Cost-effective and multifunctional design ideal for industrial and commercial production.

    8. Rich optional functions including auto focus, WIFI, rotary and motorized table for extended use.


    Machine Parameters

    Product Model

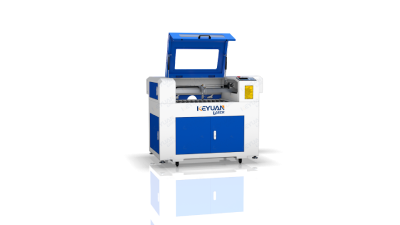

    Small Size CO2 Laser Engraving Cutting Machine For Non-metals(Image1)

        KEY-6040

    Small Size CO2 Laser Engraving Cutting Machine For Non-metals(Image2)

          KEY-9060

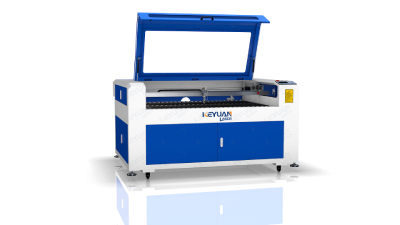

    Small Size CO2 Laser Engraving Cutting Machine For Non-metals(Image3)KEY-1390

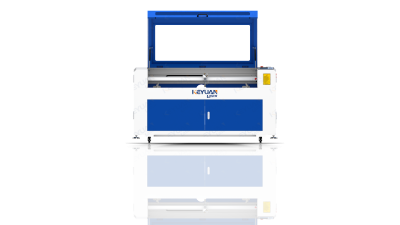

    Small Size CO2 Laser Engraving Cutting Machine For Non-metals(Image4)

        KEY-1410

    Working Area600*400mm900*600mm1300*900mm1400*1000mm
    Laser Power                              60W/80W/100W/130W/150W/180W
    Laser typeCO2 glass laser tube,   wavelength 10.6μm,    Water-cooled
    Engraving speed0-60000mm/min
    Cutting Speed0-40000mm/min
    Repeating location±0.01mm
    Transmission typeBelt transmission
    Driving system
    		Stepper motor
    Machine table
    		Blade table (alternative: honeycomb table)
    Graphic format supported*.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las
    Software supportedCorelDraw, AutoCAD (support compatible)
    Control systemRuiDa RDC6445G DSP Off-line control, power 0~100% adjustable
    Minimum letter sizeChinese 2.0×2.0mm, English 1.0×1.0mm
    Working voltage110V/220V 50/60Hz
    Working condition
    		0-45℃; Humidity 5%-95% (no condensation)

    Machine Application

    1. Engraving and cutting acrylic, plexiglass and plastic sheets for signage and display production.
    2. Processing wood, MDF and plywood for furniture, crafts and decorative items.
    3. Cutting and engraving leather, fabric and textile materials for garment and accessory making.
    4. Engraving patterns and logos on rubber, paper, stone and glass for craft production.
    5. Industrial non-metal processing for advertising, decoration and small manufacturing businesses.
    6. Custom personalized processing for gifts, artworks and small-batch commercial production.

    Processed Sample

    Small Size CO2 Laser Engraving Cutting Machine For Non-metals(Image5)



Previous:

No more

Next:

No more

Product Inquiry

Please leave your message, we will contact you quickly after receiving it, thank you for your support!

Small Size CO2 Laser Engraving Cutting Machine For Non-metals
  • What kind of product do you need?
  • What's your budget?
  • What other information do you need to know?

Q

Are these machines safe to use?cigarette box three-dimensional packaging machine?

A

Yes, all our machines come with protective enclosures, safety interlocks, and laser safety goggles. Proper training is still recommended.

Q

Do you offer customization for voltage or plug types?

A

Yes. We can adjust voltage (110V/220V/380V, etc.) and provide local plugs for your country.
