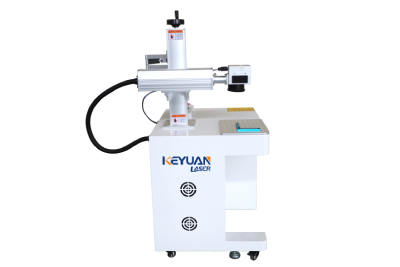

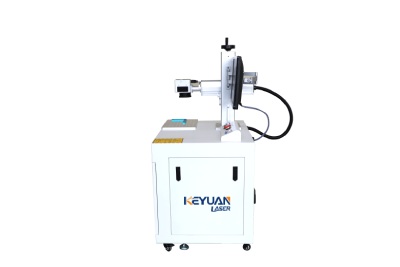

Desktop Fiber (MOPA) Laser Marking Machine
- Product details
-
Machine Features
1. Desktop marking machine: It has a small footprint, a lightweight body and is easy to install. It is highly suitable for fixed use on the desktop, with flexible layout, and is applicable to factories, workshops, and small-scale processing scenarios.
3. Wide Power & Laser Options: Supports 20W-100W power with MAX/Raycus/JPT fiber laser sources for diverse marking needs.
2. High-Precision Marking: Resolution of 0.001mm and repeat positioning accuracy of 0.003mm, ensuring clear and precise results.
4. Fast Marking Speed: Marking speed up to 7000mm/s, significantly improving production efficiency.
5. Air-Cooled System: Maintenance-free air cooling, eliminating the need for complex water cooling setups.
6. Flexible Marking Areas: Multiple marking area options (110*110mm/150*150mm/175*175mm/200*200mm/300*300mm) to fit different workpiece sizes.

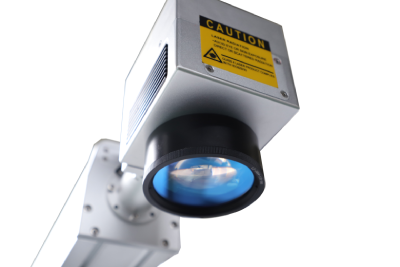

7. Reliable Galvo Head: Equipped with Sino-galvo galvanometer for stable and consistent performance.
8. Two-Year Warranty: Full machine warranty with free part replacement for non-human-caused issues during the warranty period.Machine Parameters
Product Name
Desktop Fiber Laser Marking Machine (MOPA)
Marking Area 110*110mm/150*150mm/175*175mm/200*200mm/300*300mm
Laser Power 20W/30W/50W/60W/70W/80W/100W Laser Type Fiber Module Laser Wavelength 1064nm Laser source RAYCUS/MAX/ IPG/ JPT fiber laser source Model life 100,000 Hours Cooling Mode Air cooling and Water Cooling (Optional) Marking speed 0-7000mm/s Repeat positioning accuracy 0.003mm Resolution 0.001mm Minimum line width 0.01mm Minimum character height 0.2mm Galvo head/galvanometer Sino-galvo galvanometer Graphic format supported DWG、DFX、BMP、JPG、PNG、TIF、PCX、TAG、GIF、 PLT etc.. Warranty Two-year warranty for the whole machine (repalce parts during warranty(no human reason)) Frequency 20kHz~80kHz Process Material All kinds of metal and part of Non-metal Materials Working voltage 110V/220V Optional Working condition 0-35°C humidity≤90% Machine Application
Fiber laser marking machine has fast marking speed and high efficiency. The photoelectric conversion efficiency is high, which greatly saves electric energy. The output beam quality is good, the service life is long, maintenance-free, no consumables, saving operating costs.

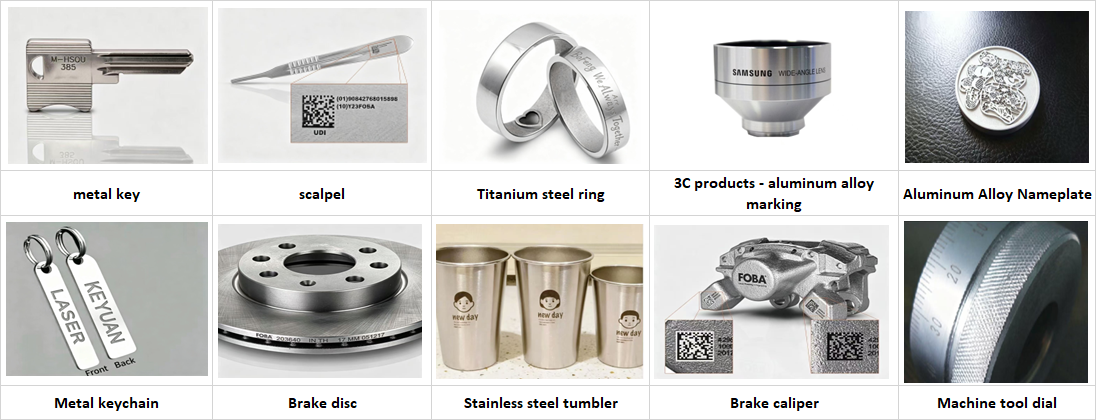

Applicable to stainless steel, carbon steel, aluminum oxide, aluminum alloy, aluminum, copper type, iron, gold, silver, cemented carbide and other metal materials surface engraving. Hard plastic, PVC material, ceramics with glaze layer, clay teapot, paper box with paint, melamine boards, mirror paint layer, graphene, chip de-lettering, cans, milk powder buckets and so on.Processed Sample
