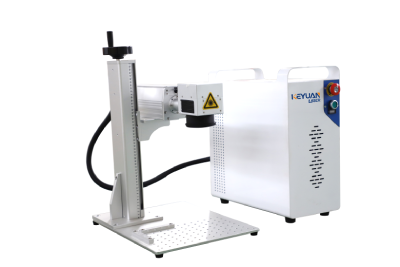

Split Type Mini Fiber (MOPA) Laser Marking Machine 20W-100W
- Product details
-
Machine Features
1. Mini Split Design: Compact mini-split structure, lightweight and easy to move, suitable for on-site marking tasks.
2. High-Precision Marking: Resolution of 0.001mm and repeat positioning accuracy of 0.003mm, ensuring clear and precise results.
3. Wide Power & Laser Options: Supports 20W-100W power with MAX/Raycus/JPT fiber laser sources for diverse marking needs.
4. Fast Marking Speed: Marking speed up to 7000mm/s, significantly improving production efficiency.
5. Air-Cooled System: Maintenance-free air cooling, eliminating the need for complex water cooling setups.
6. Flexible Marking Areas: Multiple marking area options (110110mm/150150mm/175175mm/200200mm/300*300mm) to fit different workpiece sizes.

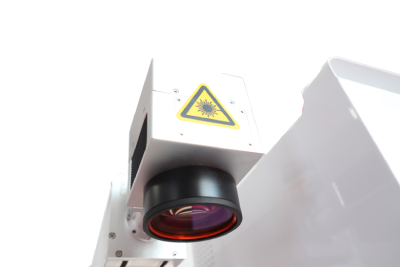

7. Reliable Galvo Head: Equipped with Sino-galvo galvanometer for stable and consistent performance.
8. Two-Year Warranty: Full machine warranty with free part replacement for non-human-caused issues during the warranty period.Machine Parameters
Product Name
Split Fiber Laser Marking Machine (MOPA)
Marking Area 110*110mm/150*150mm/175*175mm/200*200mm/300*300mm
Laser Power 20W/30W/50W/60W/70W/80W/100W Laser Type Fiber Module Laser Wavelength 1064nm Laser source RAYCUS/MAX/ IPG/ JPT fiber laser source Model life 100,000 Hours Cooling Mode Air cooling and Water Cooling (Optional) Marking speed 0-7000mm/s Repeat positioning accuracy 0.003mm Resolution 0.001mm Minimum line width 0.01mm Minimum character height 0.2mm Galvo head/galvanometer Sino-galvo galvanometer Graphic format supported DWG、DFX、BMP、JPG、PNG、TIF、PCX、TAG、GIF、 PLT etc.. Control Software JCZ Warranty Two-year warranty for the whole machine (repalce parts during warranty(no human reason)) Frequency 20kHz~80kHz Process Material All kinds of metal and part of Non-metal Materials Working voltage 110V/220V Optional Working condition 0-35°C humidity≤90% Machine Application
1. Engraves brand logos, product text, production batch numbers and traceability codes on metal components.
2. Creates permanent graphics, photos and QR codes on non-metallic materials for product identification and marketing.
3. Performs small-area engraving and cutting on jewelry, adding personalized designs and hallmarks.
4. Applied in automotive and electronics industries for marking part numbers and specifications on metal and plastic components.
5. Used in hardware and tool manufacturing for engraving brand logos and quality marks on metal products.

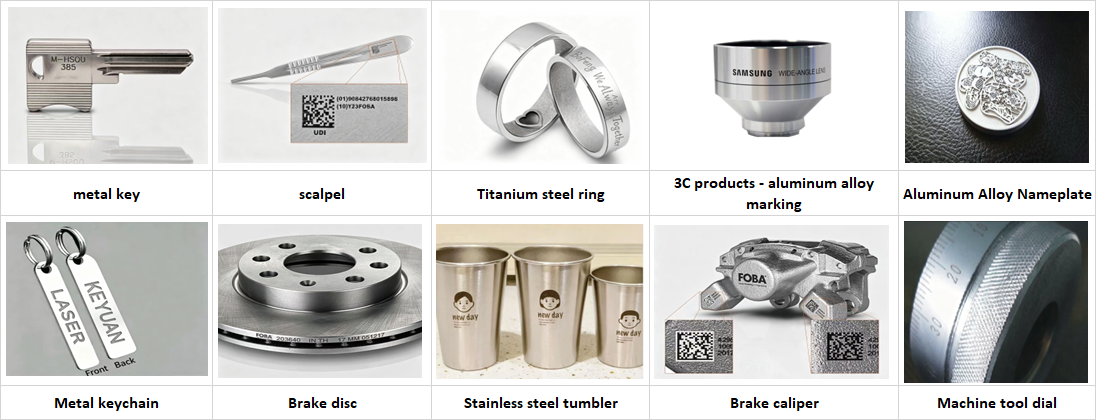

6. Ideal for on-site marking tasks in workshops and field operations due to its portable, split-type design.Processed Sample
