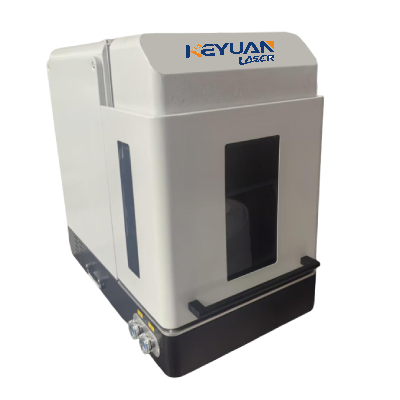

Full-enclosed Smart Fiber (MOPA) Laser Marking Machines
- Product details
-
Machine Features
1. Enclosed Safety Design – Full enclosed structure ensures safe operation with no laser leakage, effectively preventing radiation hazards and dust interference, meeting industrial safety standards for workshop use.
2. High-Precision Red Light Positioning – Equipped with double red light galvanometer and red light positioning device, accurately indicating laser processing position (repositioning precision 0.03mm) to avoid marking deviation and ensure one-time marking accuracy.
3. High-Speed & Controllable Marking – Ultra-fast marking speed up to 7000mm/sec, with precise control over laser spot depth and shape, suitable for both delicate fine marking and high-efficiency batch processing.
4. Superior Beam Quality & Precision – 1064nm fiber laser wavelength, 0.01mm resolution, 0.01mm minimum line width and 0.2mm minimum character height, enabling ultra-fine and clear permanent markings.
5. Low-Cost & Stable Operation – Air cooling system (no water cooling required) reduces maintenance costs, single-phase 220V/50Hz power supply adapts to mainstream industrial power grids, no consumables and low power consumption for long-term continuous use.
6. Wide Environmental Adaptability – Operates stably in 0~35°C temperature and ≤90% humidity environments, suitable for various workshop conditions without strict environmental constraints.
7. Portable & Space-Saving Design – Compact size with left/right carrying handles, package dimensions 990500770mm (0.4CBM) and gross weight 100KGS, easy to move and place in small workshops or lab environments.
8. Intuitive Operation Interface – Configured with ammeter, electric lift switch and LED light, color-coded neat wiring, and user-friendly controller, simplifying operation for operators of all skill levels.Machine Parameters
Product Name
Full-enclosed Fiber Laser Marking Machine (MOPA)
Marking Area 110*110mm/150*150mm/175*175mm/200*200mm
Laser Power 20W/30W/50W/100W Laser Type Fiber Module Laser Wavelength 1064nm Laser source RAYCUS/MAX/ IPG/ JPT fiber laser source Model life 100,000 Hours Cooling Mode Air cooling and Water Cooling (Optional) Marking speed 0-7000mm/s Repeat positioning accuracy 0.003mm Resolution 0.001mm Minimum line width 0.01mm Minimum character height 0.2mm Galvo head/galvanometer Sino-galvo galvanometer Graphic format supported DWG、DFX、BMP、JPG、PNG、TIF、PCX、TAG、GIF、 PLT etc.. Control Software JCZ Warranty Two-year warranty for the whole machine (repalce parts during warranty(no human reason)) Frequency 20kHz~80kHz Process Material All kinds of metal and part of Non-metal Materials Working voltage 110V/220V Optional Working condition 0-35°C humidity≤90% Machine Application
1. Engraves brand logos, product text, production batch numbers and traceability codes on metal components.
2. Creates permanent graphics, photos and QR codes on non-metallic materials for product identification and marketing.
3. Performs small-area engraving and cutting on jewelry, adding personalized designs and hallmarks.
4. Applied in automotive and electronics industries for marking part numbers and specifications on metal and plastic components.
5. Used in hardware and tool manufacturing for engraving brand logos and quality marks on metal products.

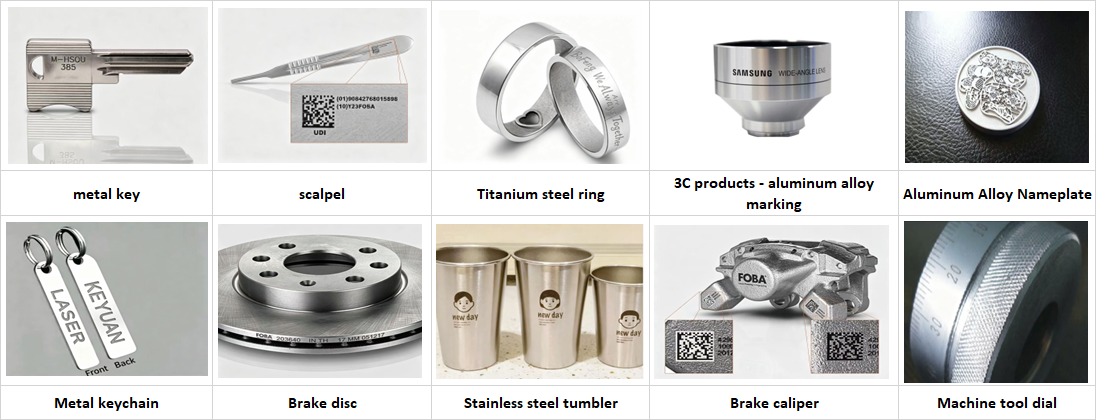

6. Ideal for on-site marking tasks in workshops and field operations due to its portable, split-type design.Processed Sample
